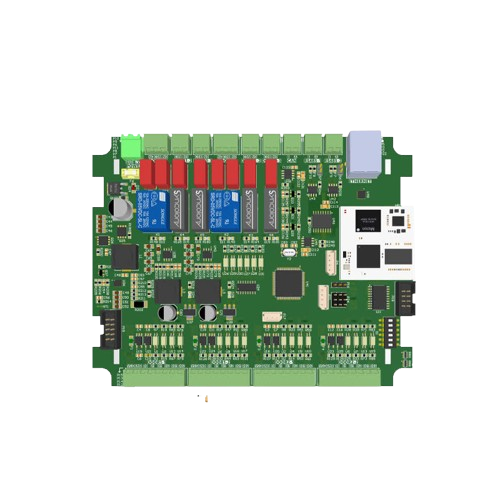

The PA-8500 is a powerful and cost-effective access control controller designed for new installations and replacement projects. It supports door control, access level management, anti-passback scenarios, reader integration, and professional access control software environments.
PA-8500 is built for organizations that need reliable door control, reader connectivity, programmable digital inputs, dry contact relays, and integration with access control software.
Designed to control two doors with programmable settings such as door name, number, schedule, and access level.
Includes two Wiegand ports with support for 26/34-bit Wiegand readers for access control environments.
Supports access level management, anti-passback configuration, and intelligent control scenarios.
The following table summarizes the main hardware, communication, reader, output, and power specifications.
| Processor | Quad-Core Cortex-A55 up to 2.0GHz |
|---|---|
| DDR | LPDDR4, 4GB |
| Flash | eMMC 8GB |
| Communication | LAN 10/100 Mbps |
| Operating Temperature | 0°C to 55°C |
| Humidity | 20% to 90% |
| Operating System | Linux |
| Supported Readers | Up to 8 RS485 BUS clients and 2 Wiegand 26/34-bit input ports |
| Outputs | 2 dry contact relays (NC / COM / NO) and 2 dry contact relays (NO / COM) |
| Power Supply | 7 to 24V AC/DC |
| Supported Software | Access control software |
Download the PA-8500 datasheet to view product features, functions, and technical specifications.
