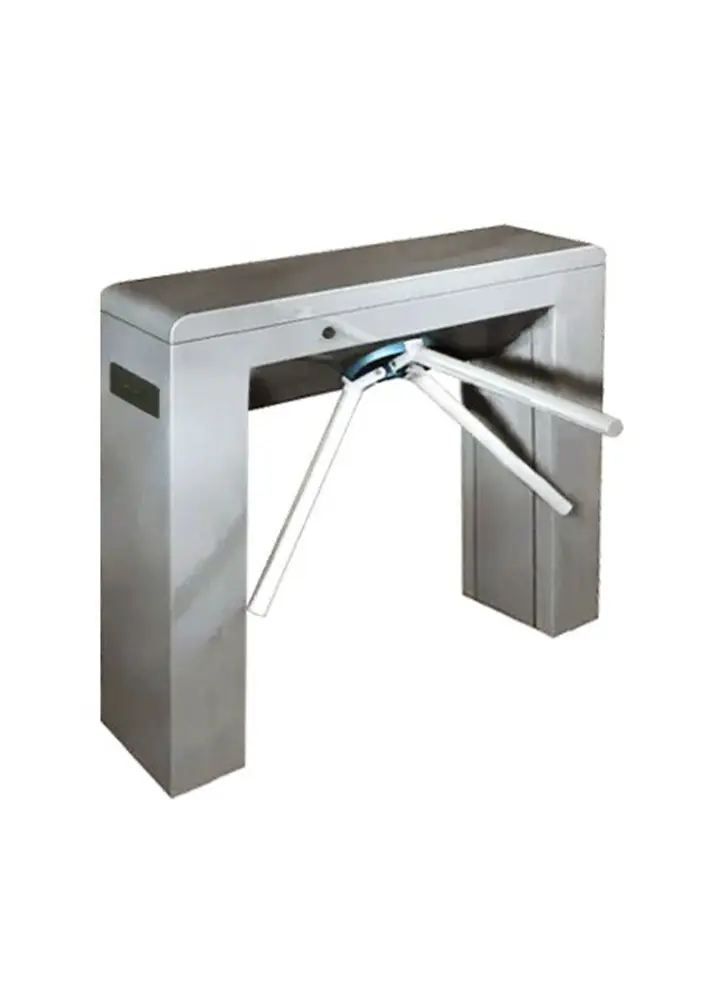

TG-T1000 Tripod Turnstile Gate: Reliable and Efficient Access Control

The TG-T1000 Tripod Turnstile Gate is designed to provide secure and efficient pedestrian access control in various environments. With its robust construction and advanced features, the TG-T1000 ensures smooth operation and enhances security measures.

Key Features:

• Durable Construction:
  Built with high-quality materials to withstand heavy usage and harsh conditions, ensuring longevity and reliability.
• Efficient Mechanism:
  The tripod mechanism allows for controlled and smooth passage, minimizing bottlenecks during peak hours.
• Access Control Integration:
  Compatible with various access control systems, including RFID, biometric readers, and barcode scanners, for flexible authentication methods.
• Bi-Directional Operation:
  Supports both entry and exit directions, allowing for versatile installation based on site requirements.

• Fail-Safe Mechanism:
  In case of power failure, the arms automatically drop to allow free passage, ensuring safety during emergencies.



Technical Specifications of the TG-T1000:

• Material: SUS304 Stainless Steel (for the main structure)
• Dimensions: 1140 mm (L) × 290 mm (W) × 1000 mm (H)
• Power Supply: AC110V/220V
• Operating Temperature: -28°C to +60°C
• Passage Width: 750 mm
• Throughput Rate: Up to 30 persons/min
• Opening Time: 2 seconds
• Ingress Protection: IP44
• Communication Interface: Dry Contact / RS485
• Motor Type: Mechanical Motor
• Material for Panels: Steel (for the barrier)

Applications:

• Office Buildings
• Public Transportation Stations
• Stadiums and Arenas
• Educational Institutions
• Government Facilities

The TG-T1000 Tripod Turnstile Gate offers a reliable solution for organizations seeking to manage pedestrian flow while maintaining a professional appearance. Its smart design and advanced components make it ideal for secure yet welcoming entry systems.
